Lamination Film Plant
We believe that every products existing in industry is a result of an idea and every idea has a cause.

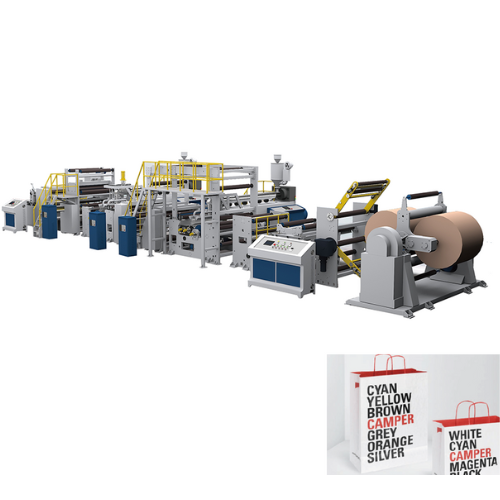

Tandem Woven Extrusion Lamination Machine
Single Side Extrusion Lamination Machine
Lamination Film Plant Specifications
|
Component
|
Specification
|
|---|---|
|
Extruder
|
100 MM Diameter
|
|
L/D Ratio
|
30 : 1
|
|
Processing Material
|
PP, LD
|
|
Production Capacity
|
200 Kg/hr
|
|
Line Speed
|
0-100 M/Min.
|
|
Input Fabric Roll
|
Max. 110 CM or 1200 KG
|
|
Chill Roll
|
1 Mirror finish and 1 Matt Finish
|
|
Features
|
Double unwinder, Preheating, Banana Roll & Double winder with edge trim reminder
|
|
Connected Load
|
315 KVA
|
COLOR PRINTING MACHINE
|
Specification
|
Details
|
|---|---|
|
Printing Substrate
|
Woven PP or HDPE fabric, laminated or unlaminated
|
|
Type
|
Flexographic
|
|
Print Combination
|
2+2, 3+1 or 4+0
|
|
Width
|
210 CM
|
|
Number of Colors
|
4
|
|
Max Speed
|
0-120 M/Min.
|
|
Print Repeat
|
0.6 to 4.2 M
|
Let's Talk About Project!
Need assistance? Contact us today—our team is here to help!
